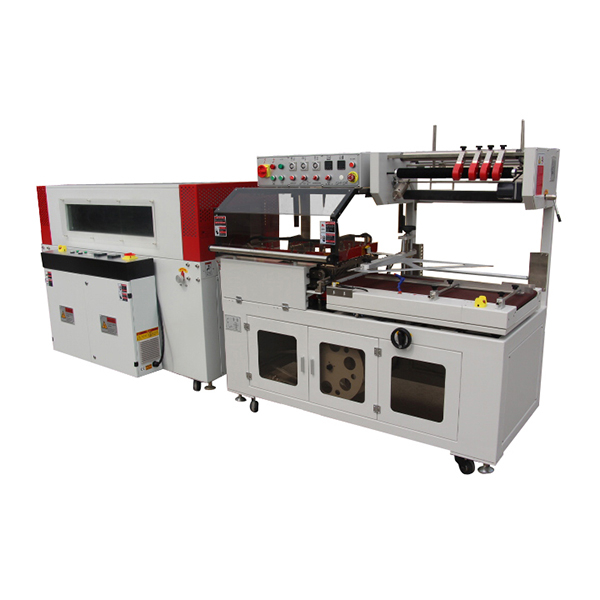

Fully Automatic L-Shaped Sealing and Cutting Machine

Power/power

220V 50/60Hz ≤2kw

sealing system

heat source

Using stainless steel heating tube, long service life

Sealing knife

It adopts anti-stick and high-temperature resistant alloy sealing knife, and the outside of the knife is coated with American DuPont Teflon non- stick film.

Sealing knife temperature control

Adopting Japanese "OMRON" digital display temperature controller and imported heat-sensitive response control, the air temperature is adjustable to -300`C

Sealing knife size

The width is adjustable with a manual wheel, and the height is 5-125mm; Sealing cutter size; L550×W450mm

Sealing knife protection

Adopted Taiwan Yonghong. Effectively prevent mis-sealing of packaging objects

cylinder

Taiwan Airtac cylinder controls sealing and cutting, Ensure the sealing is firm and stable, with low noise during sealing

Conveyor system

belt

Germany Siegelin PU conveyor belt

Motor

Taiwan's "Tai Bang" ensures smooth transportation

Detection

Using American Banner photoelectric sensor to accurately and sensitively detect product transportation stops

recycling system

Motor

Taiwan's "Tai Bang" ensures accurate and uniform waste recycling

sensory switch

Using Taiwan FATEK to accurately control the waste recycling time

Film feeding system

Motor

Taiwan's "Tai Bang" guarantees smooth film delivery

sensory switch

Taiwan FATEK, accurately controls the length of film feeding

PLC

FATEK

contactor

Tracy

Intermediate relay

Schneider

thermostat

Omron

emergency switch

Siemens, Germany

Minimum packaging size

The length cannot be less than 90MM (all products are within valid regulations)

Packaging range

Length*width*height (2 90*240*65 ) mm

Mechanical Dimensions

1800*850*1525 (the specific dimensions of L*W*H are subject to the actual object)

packaging speed

Depending on the size of the packaging (0-18 pieces/minute)

air pressure

5.5KG/cm²

Anti-corrosion structural material surface sprayed or nickel plated
