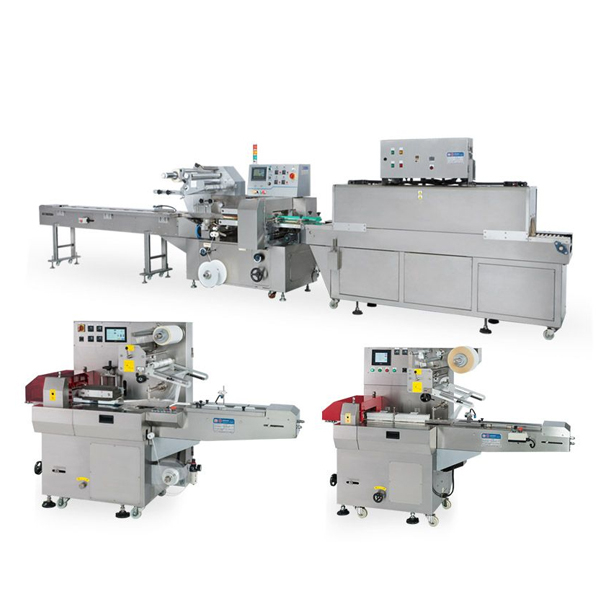

This machine adopts technology from Japan and Taiwan, and mostly uses imported electrical components. It is a high-speed automatic packaging machine born from advanced technology and rich experience.
Availability: | |
---|---|
Special recommendations:
● This machine adopts technology from Japan and Taiwan, and mostly uses imported electrical components. It is a high-speed automatic packaging machine born from advanced technology and rich experience.
● This machine is simple to operate, reliable in quality and stable in performance. Frequency control, stepless speed change. The control of the entire machine is centralized by PLC, reducing points of failure. The heat shrink furnace has high-efficiency dual temperature zones, stepless speed regulation, and automatic temperature control. Efficient hot air circulation ensures shrinkage quality
Performance features:
● Color touch screen control system, driven by three servo motors, the whole machine is easy to operate, has high stability, high packaging efficiency and low failure rate; the bag length, speed and temperature can be adjusted individually, making the operation easy and accurate.
● Anti-cut safety clutch device will not damage the packaging .
● High-sensitivity photoelectric eye color mark tracking, mathematical input of sealing and cutting position, making the sealing and cutting position more accurate.
● Independent PID control of temperature, better suitable for various coating materials.
● Positioning stop function, no knife sticking, no waste of film.
● The transmission system is simple, the work is more reliable, and the maintenance is more convenient.
● The product automatically reverses when the switch is turned on, and can be turned on directly after restarting for easy operation.
● Add a waste recycling device to make the packaging more beautiful, saving about 20%-30% of material compared with traditional folding film packaging machines.
● With motor brake control, the equipment is responsive.
● The heat shrinkage furnace has high-efficiency dual temperature zones, efficient hot air circulation , and automatic temperature control to ensure shrinkage quality .
● Scope of application : food , medicine, beverage group packaging, bowl noodles , milk tea , mosquito coils , wallpaper , exercise books , filters , electrical switches , plastic wrap, garbage bags, various stationery , industrial parts and daily cosmetics Packaging etc.
Main technical parameters (multiple selection)
Maximum film width | ≤ 63 0mm | |||
model | P SA-350C-75 | |||
Package Size | L: bag length | |||
W: object width | ||||
H: object height | ||||
packaging speed | ||||
Film type | POF heat shrinkable film | |||
rated power | Packaging machine: 4.75KW; shrinking machine 22 KW | |||
power supply | Host: 220V, 50HZ/60HZ; Shrinking machine: 380V, 50HZ/60HZ | |||
Host size | 4800x1170x1500mm | |||
Shrinking machine | Overall dimensions: 23 00x 1070 x 1265 mm | Furnace channel size: 18 00* 500 * 3 00mm | ||
Total Weight | Host: about 760KG | Shrinking machine: 55 0KG |
All components of the equipment must adapt to the on-site temperature environment, -2℃~58℃.
