model | product name | quantity | Remark |
670SF | Fully automatic straight-in cuff sealing and cutting machine | 1 set | Servo type |
6040E | PE constant temperature heat shrink packaging machine | 1 set | Standard type |
| Unpowered conveyor line | 1 set | |
| 1.5m front-end power conveyor belt | 1 item | |
Note: The sealing machine is controlled by a full servo system , which is stable and reliable.
Technical parameters
The sealing, cutting and shrinking machine is to automatically wrap the package with shrink film, and then heat the packaging material to shrink and wrap the product tightly, which protects the product from moisture, pollution, and certain external impacts.
● Adopt FATEK programmable program controller to realize mechanical, electrical and pneumatic integration
● Photoelectric switch automatically detects product arrival
● Automatic and manual switchable control system
● Using a specially designed three-piece sealing knife, the sealing line is firm and will not split. The outside of the knife body is coated with high-temperature resistant Teflon non-stick film, which does not stick to the knife. The sealing has no odor.
● The limit switch feeds the film, which greatly reduces the loss of the film.
● The film feeding device is driven by a synchronous belt and operates more stably, accurately and noiselessly.
● Omron digital display thermostat, accurate temperature, can directly see the sealing, cutting and shrinkage temperature
● The transmission adopts frequency converter to control the transmission speed, and the stepless speed regulation is more stable.
● Super large air volume cooling airflow, the product quickly cools and shrinks after thermal expansion.
● This machine uses stainless steel 304 heating tube for heating
● The constant temperature circulation air duct system makes the temperature in the shrink chamber more uniform, allowing the shrink product to achieve the best effect.
● The high-temperature-resistant fiber tube is wrapped with imported silicone tube. The chain-rod conveyor is durable and can adopt different material conveyor structures according to different products.
Packaging method: cuff packaging (paint color and frame material optional)
Technical parameters
| Sealing knife size (mm) | 670 |
| Temperature (℃) | Air temperature 0-300 |
| Workbench height (mm) | 820±50MM |
| Packaging speed (pieces/minute) | servo type 1-20 packages per minute |
| Sealing and cutting machine net weight (kg) | 680 |
| Shrinking machine net weight (kg) | 650 |
| Sealing and cutting machine power (kg) | 3 |
| Shrinking machine power (kg) | 20 |
| Maximum packaging size (mm) | length 400*width 600*height 300 |
| Shrink bin size (mm) | length 1800*width 600*height 400 |
| Power supply | 3PH 380V 50HZ |
| External air source (kg/c㎡) | 6-8 |
| Suitable | Suitable for shrink film PE cuff packaging |
| Shrink film thickness (mm) | 0.035-0.18 |
| Shrinkage ratio | Horizontal 30-60% Vertical 20-75% |
Standard main components (selection of electronic control system)
● PLC Yonghong
● Frequency converter Zhongchen
● Motor Shengbang
● Human-computer interface Yonghong
● solid state relay bidok
● Best button switch
● Relay Delixi
● Thermostat Yatai
● Contactor Delixi
● Reducer Chenbang
Main components (selection of electronic control system)
● Frequency converter Zhongchen
● Shrinking machine motor Taibang
● Solid state relay bidok
● Best button switch
● Relay Schneider
● Thermostat Yatai
● Cycle motor Shengbang
● Contactor Schneider
● The above is an overview of the technical parameters of the sealing, cutting and shrinking machine.
All components of the equipment must adapt to the on-site temperature environment, -2℃~58℃.

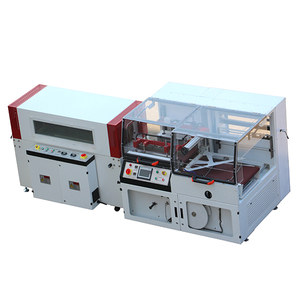

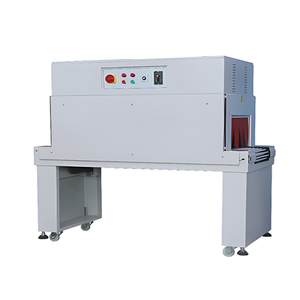

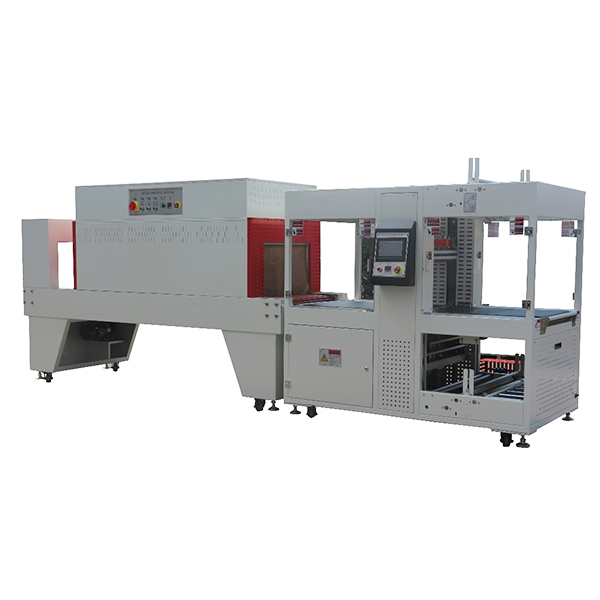

The following reference pictures of the complete set of standard machines (subject to the actual model)
