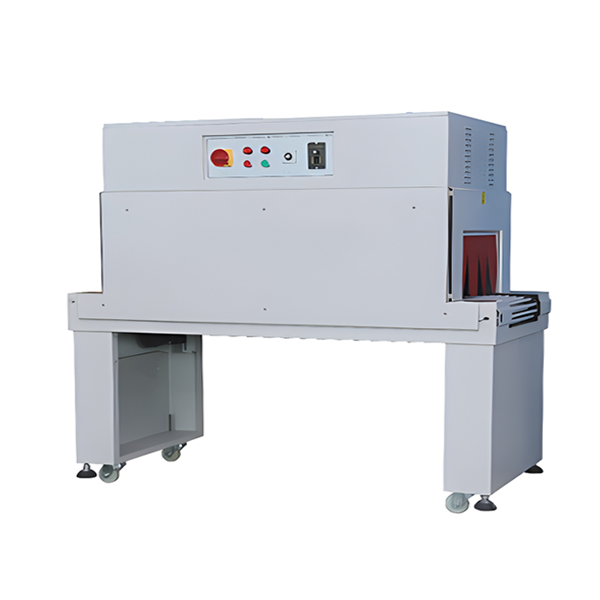

Fully automatic shrinking machine technology introduction 5030 KS
| Technical parameters 5030 KS |
Effective maximum packaging size (MM) | length 1000*width 300*height 150 |
Minimum packaging size (MM) | length 80*width 50*height 10 |
Temperature (℃) | Air temperature 0-300 adjustable |
Workbench height (mm) | 850±50MM |
Packaging speed (pieces/minute) | 1-20 |
Shrinking machine net weight (kg) | 460 |
Shrinking machine power (kw) | 18
|
Power supply | 3PH 380V 50HZ |
Application | Suitable for shrink film POF or cross-linked film |
Shrink film thickness (mm) | 0.0075-0.038 |
Loading capacity (kg) | 30
|
Shrink warehouse size (MM) | length 1500*width 500*height 300 |
Mechanical dimensions | length 1800*width 900*height 1150 (subject to actual situation) |
Main performance
● This machine is composed of frequency conversion transmission, constant temperature heating and electromechanical integration.
● This machine adopts automatic temperature control, hot air constant temperature circulation, air duct system, energy saving and high efficiency, and the wind force and direction can be adjusted.
● Original Omron digital display thermostat, accurate temperature, you can directly see the shrinkage temperature
● The transmission uses a frequency converter to control the transmission speed and the size of the wind motor, making the transmission more stable with variable frequency speed regulation.
● The constant temperature circulation air duct system makes the temperature in the shrink chamber more uniform, allowing the shrink product to achieve the best effect.
● The hollow high-temperature-resistant fiber rod is wrapped with a silicone tube and a high-temperature bearing is wrapped inside. The chain-rod conveyor is durable and can adopt different material conveyor structures according to different products.
Main components (selection of electronic control system)
◎ Shrinking machine inverter Ruineng (China)
◎ Circulation motor inverter Ruineng (China)
◎ Shrinking machine conveyor motor Taibon (CPG) (Taiwan)
◎ Solid State Relay Biduk (China)
◎ Push button switch Schneider (France)
◎ Relay Schneider (France)
◎ Thermostat OMRON ( Japan)
◎ Circulation motor TONGTAI (Taiwan)
◎ Contactor Schneider (France)
◎ Control circuit breaker Schneider (France)
◎ Multi-turn switch Siemens (Germany)
All components of the equipment must adapt to the on-site temperature environment, -2℃~58℃.
